K83 Aluminium Frame Profiles for Sliding Window

K83 Aluminium Frame Profiles for Sliding Window

Sliding Window

Inquiry Now

Product Description

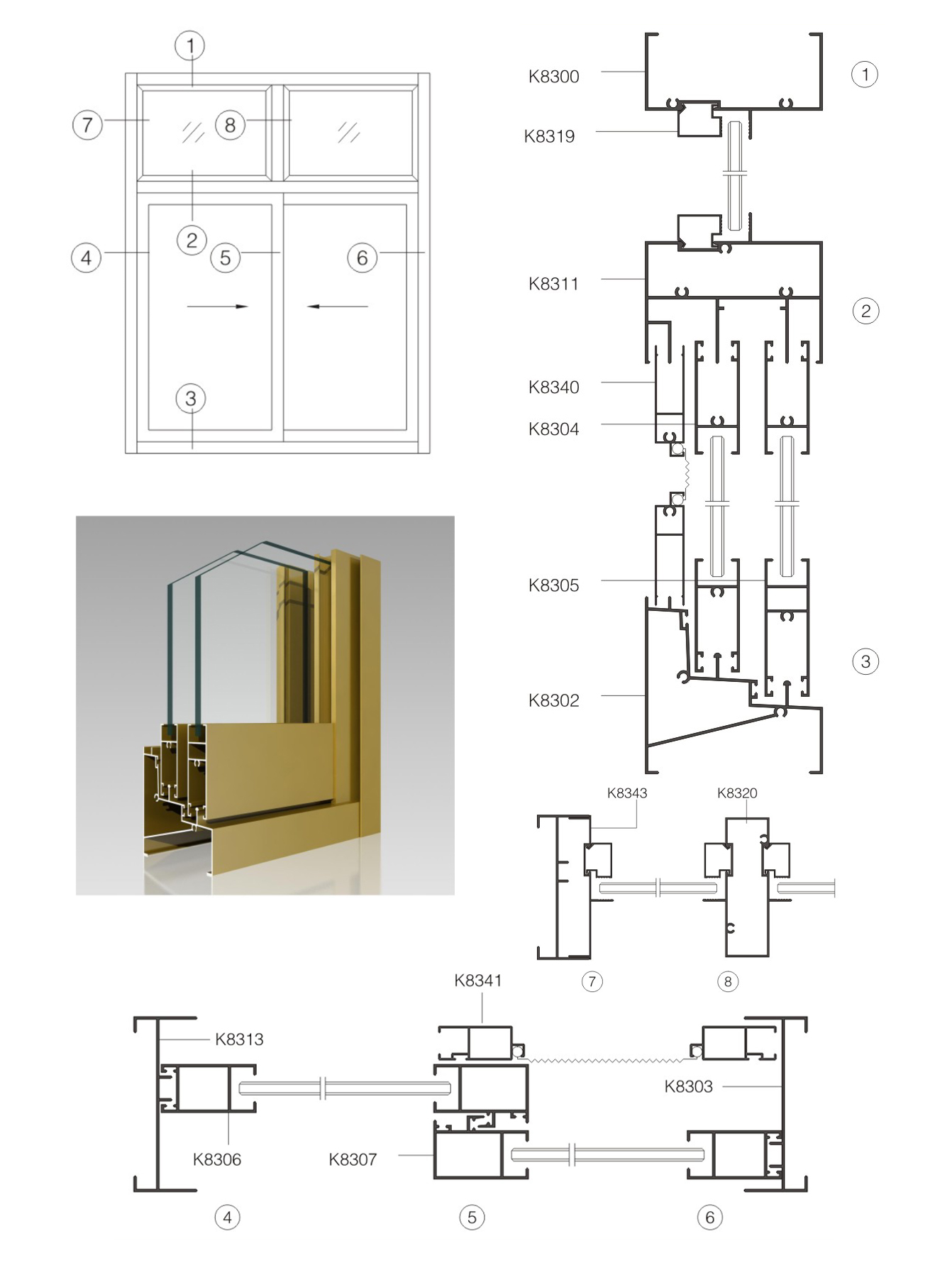

Node Drawing

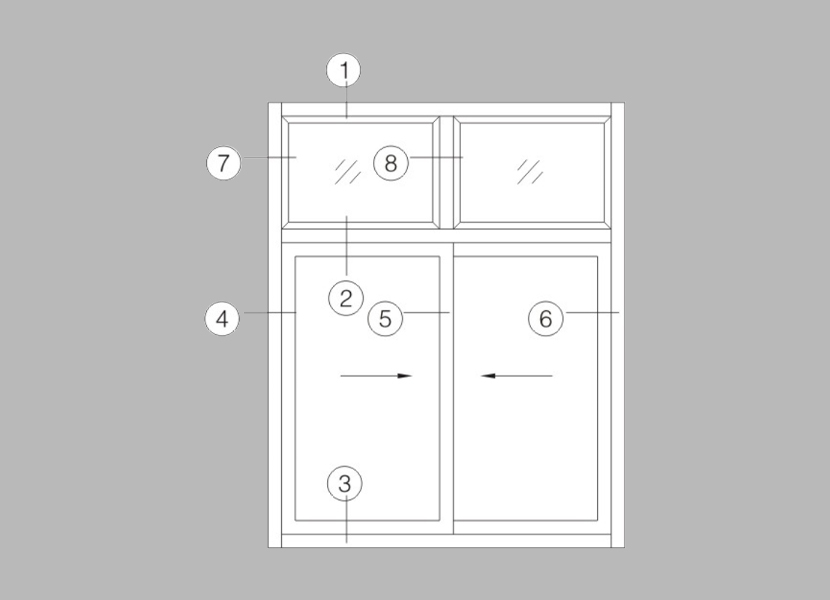

Simple Drawing

Model	K8301
Name	Slippery
Wall thickness	1.1mm
Meter weight	0.827kg/m

Model	K8302
Name	Sliding
Wall thickness	1.1mm
Meter weight	1.08kg/m

Model	K8303
Name	Edge seal
Wall thickness	1.1mm
Meter weight	0.518kg/m

Model	K8304
Name	Above
Wall thickness	1.1mm
Meter weight	0.441kg/m

Model	K8305
Name	Big under
Wall thickness	1.1mm
Meter weight	0.56kg/m

Model	K8306
Name	Light enterprise
Wall thickness	1.1mm
Meter weight	0.443kg/m

Model	K8307
Name	Hook enterprise
Wall thickness	1.1mm
Meter weight	0.486kg/m

Model	K8311
Name	Middle waist
Wall thickness	1.1mm
Meter weight	1.230kg/m

Model	K8313
Name	Edge seal
Wall thickness	1.1mm
Meter weight	0.518kg/m

Model	K8320
Name	Middle column
Wall thickness	0.9mm
Meter weight	0.670kg/m

Model	K8343
Name	Cover
Wall thickness	0.9mm
Meter weight	0.316kg/m

Model	K8300
Name	Fixed on
Wall thickness	1.1mm
Meter weight	0.60kg/m

Model	K8341
Name	Screen Window
Wall thickness	0.6mm
Meter weight	0.196kg/m

Model	K8340
Name	Screen Window
Wall thickness	0.6mm
Meter weight	0.230kg/m

Model	K8319
Name	Layering
Wall thickness	0.6mm
Meter weight	0.096kg/m

Model	K8301A
Name	Slippery
Wall thickness	1.1mm
Meter weight	0.791kg/m

Model	K8302A
Name	Sliding
Wall thickness	1.1mm
Meter weight	0.998kg/m

Model	K8304B
Name	Above
Wall thickness	1.1mm
Meter weight	0.442kg/m

Model	K8304Z
Name	Above
Wall thickness	1.0mm
Meter weight	0.384kg/m

Model	K8305A
Name	Below
Wall thickness	0.9mm
Meter weight	0.42kg/m

Model	K8305B
Name	Below
Wall thickness	1.1mm
Meter weight	0.511kg/m

Model	K8305Z
Name	Below
Wall thickness	1.0mm
Meter weight	0.491kg/m

Model	K8306A
Name	Light enterprise
Wall thickness	1.1mm
Meter weight	0.473kg/m

Model	K8306B
Name	Light enterprise
Wall thickness	1.2mm
Meter weight	0.491kg/m

Model	K8306Z
Name	Light enterprise
Wall thickness	1.1mm
Meter weight	0.429kg/m

Model	K8307B
Name	Hook enterprise
Wall thickness	1.2mm
Meter weight	0.51kg/m

Model	K8307Z
Name	Hook enterprise
Wall thickness	1.1mm
Meter weight	0.471kg/m

Model	K8308
Name	Closing
Wall thickness	1.0mm
Meter weight	0.102kg/m

Model	K8311A
Name	Middle waist
Wall thickness	1.1mm
Meter weight	1.445kg/m

Model	K8315
Name	Below
Wall thickness	0.9mm
Meter weight	0.541kg/m

Model	K8315B
Name	Below
Wall thickness	1.1mm
Meter weight	0.671kg/m

Model	K8353
Name	Cover
Wall thickness	1.1mm
Meter weight	0.33kg/m

Model	K8620
Name	Layering
Wall thickness	0.6mm
Meter weight	0.091kg/m

Model	K8302B
Name	Sliding
Wall thickness	1.1mm
Meter weight	1.147kg/m
