OEM K78 aluminium section for sliding window Suppliers

Perfection is our relentless pursuit, to make every detail of our K78 aluminium section for sliding window refined and perfect is our persistent goal, Because we believe only delicately carved can make real gold quality.

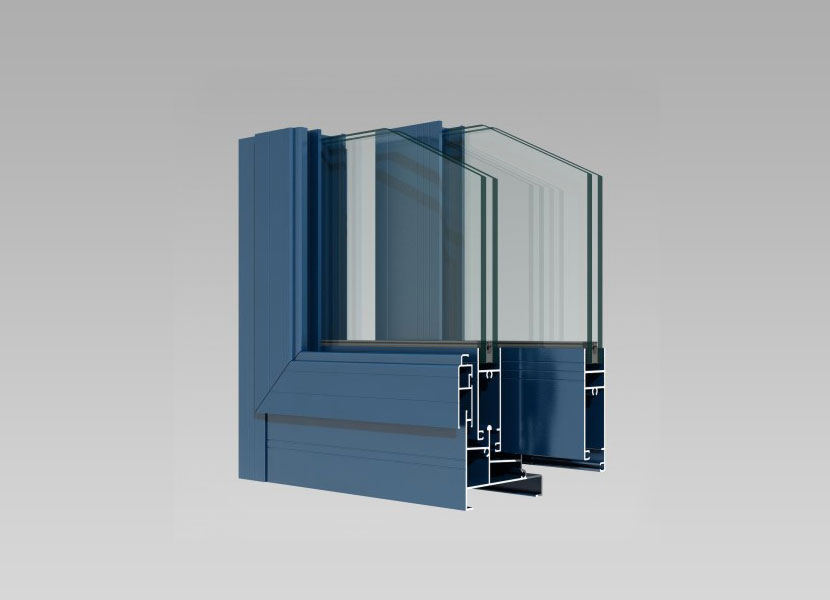

K78 aluminium section for sliding window

K78 aluminium section for sliding window

Sliding Window
Inquiry Now
Product Description

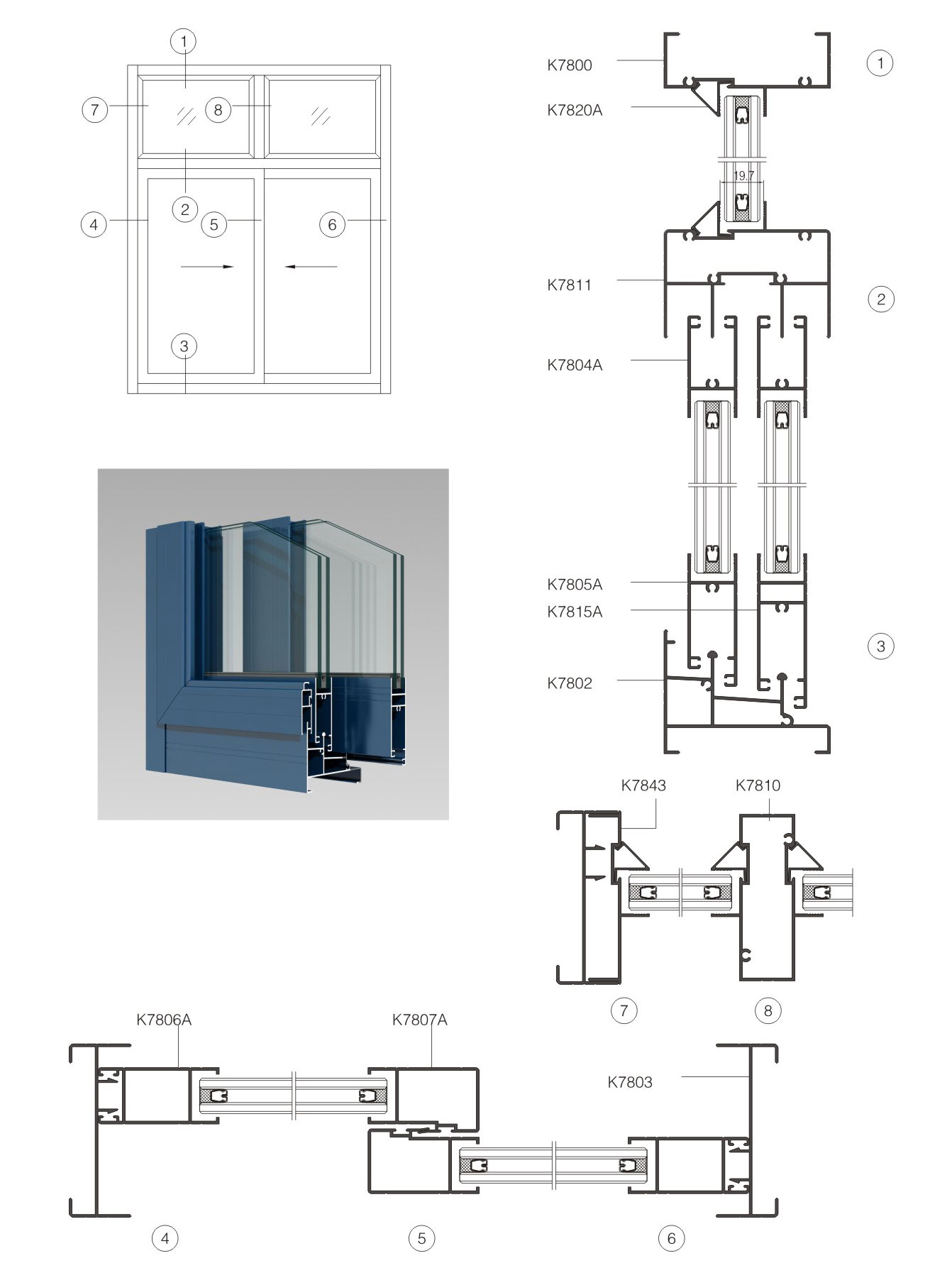

Node Drawing

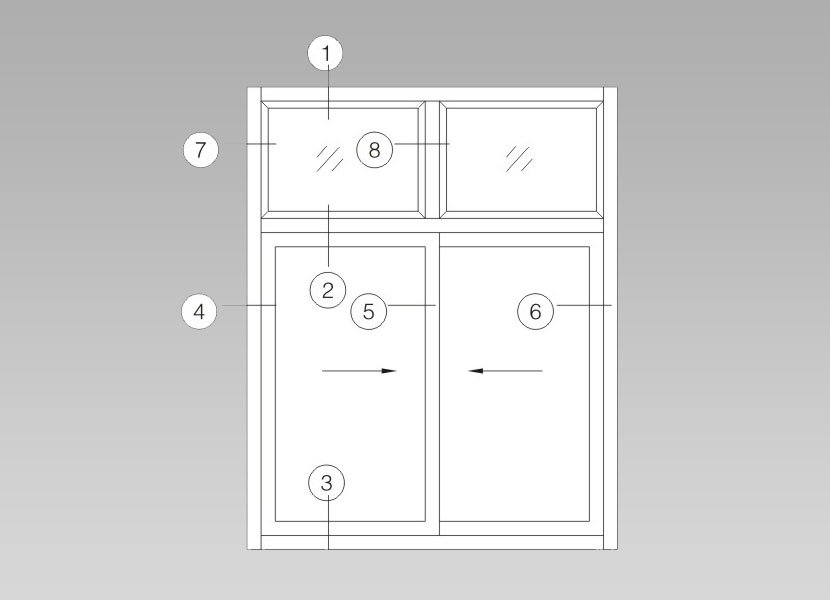

Simple Drawing
  • The nominal wall thickness of the profile is 1.2~1.4mm, which is in line with relevant domestic standards.
  • The outer frame profile has a width of 78mm, and the inner and outer frames are all connected by 90° screws. The two-way seal is double-coated, the lines are simple, the processing is not exposed, and the appearance is elegant.
  • The sliding track has wide and narrow points, and is equipped with various schemes such as high and low sides, inner and outer yarn rails, etc., giving customers a variety of options. The wide rail adopts a circular arc design, the appearance is beautiful, the push and pull is smooth and smooth, and the bearing capacity is strong. , extending the life of the roller.
  • The sliding adopts the form of high and low rails, and is disassembled and assembled. At the same time, the stepped slope design is adopted, which greatly improves the watertightness of the whole window and can adapt to the coastal rainy area.
  • The inner fan light and the hook enterprise adopt hollow design, and the strength is excellent. The upper and lower parts are equipped with high quality guard files, which can increase the firmness and prevent the wind and rain from infiltrating and increase the air tightness.
  • The lower material adopts the form of high and low drop, which not only has better water tightness, but also can cover the sliding material track, so that the overall window shape is more beautiful and generous. The large series has three small series, which can meet the three different requirements of double glass, single glass and no pressure strip, and have strong versatility with each other.
  • The number of molds is large, and the sections are complete, which can satisfy any window type.
