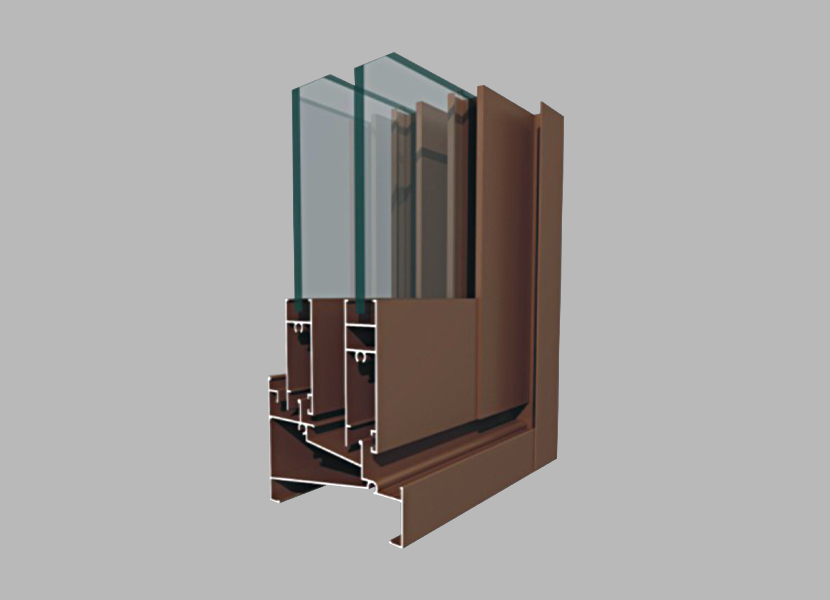

828 sliding window aluminum extrusion profile

Sliding Window

Inquiry Now

Product Description

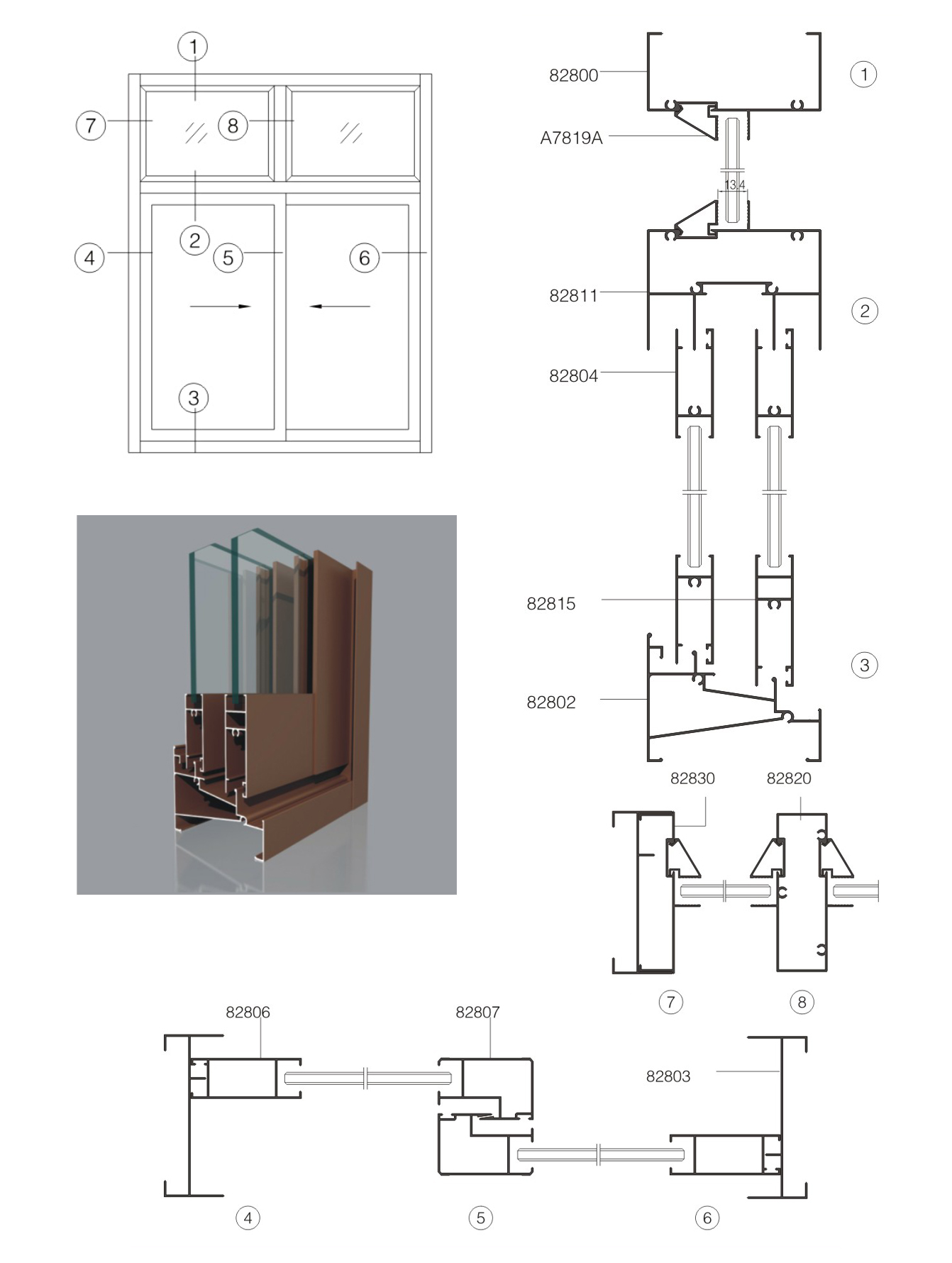

Node Drawing

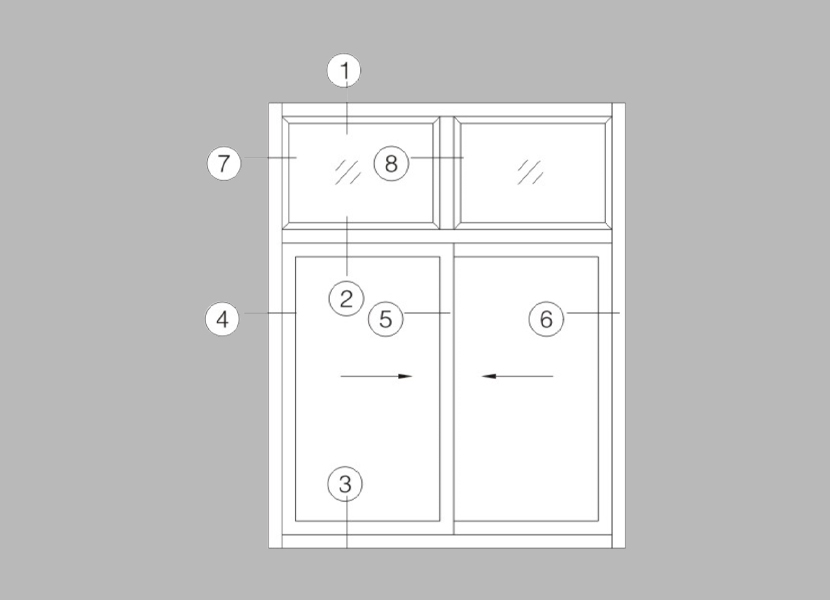

Simple Drawing

Model	82801
Name	Slippery
Wall thickness	0.9mm
Meter weight	0.578kg/m

Model	82802
Name	Slippery
Wall thickness	0.9mm
Meter weight	0.740kg/m

Model	82802A
Name	Sliding
Wall thickness	0.9mm
Meter weight	0.697kg/m

Model	82802S
Name	Sliding
Wall thickness	1.2mm
Meter weight	0.949kg/m

Model	82803
Name	Edge seal
Wall thickness	0.9mm
Meter weight	0.389kg/m

Model	82803A
Name	Edge seal
Wall thickness	0.9mm
Meter weight	0.364kg/m

Model	82803S
Name	Edge seal
Wall thickness	1.2mm
Meter weight	0.518kg/m

Model	82804
Name	Above
Wall thickness	0.9mm
Meter weight	0.330kg/m

Model	82804A
Name	Above
Wall thickness	0.8mm
Meter weight	0.295kg/m

Model	82800
Name	Fixed on
Wall thickness	0.9mm
Meter weight	0.487kg/m

Model	82800A
Name	Fixed on
Wall thickness	0.8mm
Meter weight	0.337kg/m

Model	82806
Name	Light enterprise
Wall thickness	0.9mm
Meter weight	0.386kg/m

Model	82806A
Name	Light enterprise
Wall thickness	0.7mm
Meter weight	0.304kg/m

Model	82807
Name	Hook enterprise
Wall thickness	0.9mm
Meter weight	0.432kg/m

Model	82807A
Name	Hook enterprise
Wall thickness	0.7mm
Meter weight	0.346kg/m

Model	82808
Name	Closing
Wall thickness	0.9mm
Meter weight	0.268kg/m

Model	82811
Name	Middle waist
Wall thickness	0.9mm
Meter weight	0.930kg/m

Model	82811A
Name	Middle waist
Wall thickness	0.8mm
Meter weight	0.671kg/m

Model	82811S
Name	Middle waist
Wall thickness	1.2mm
Meter weight	1.211kg/m

Model	82813S
Name	Bilateral seal
Wall thickness	0.9mm
Meter weight	0.657kg/m

Model	82815
Name	Big under
Wall thickness	0.9mm
Meter weight	0.415kg/m

Model	82820
Name	Middle column
Wall thickness	0.9mm
Meter weight	0.680kg/m

Model	82820A
Name	Middle column
Wall thickness	0.8mm
Meter weight	0.528kg/m

Model	82830
Name	Cover
Wall thickness	0.9mm
Meter weight	0.348kg/m

Model	82840
Name	Screen window
Wall thickness	0.6mm
Meter weight	0.165kg/m

Model	82842
Name	Screen window
Wall thickness	0.6mm
Meter weight	0.203kg/m

Model	82843A
Name	Cover
Wall thickness	0.8mm
Meter weight	0.224kg/m

Model	82803B
Name	Edge seal
Wall thickness	1.2mm
Meter weight	0.551kg/m

Model	82813A
Name	Bilateral seal
Wall thickness	1.0mm
Meter weight	0.799kg/m
